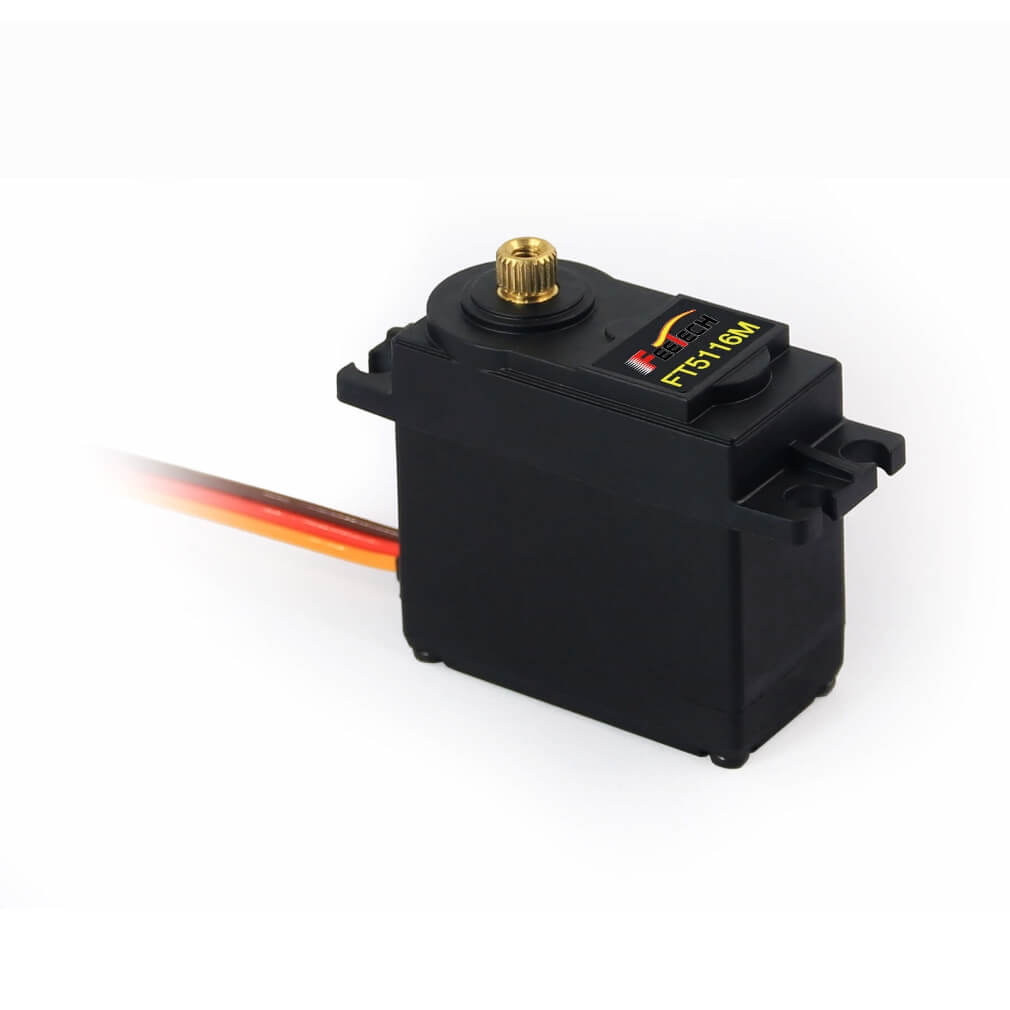

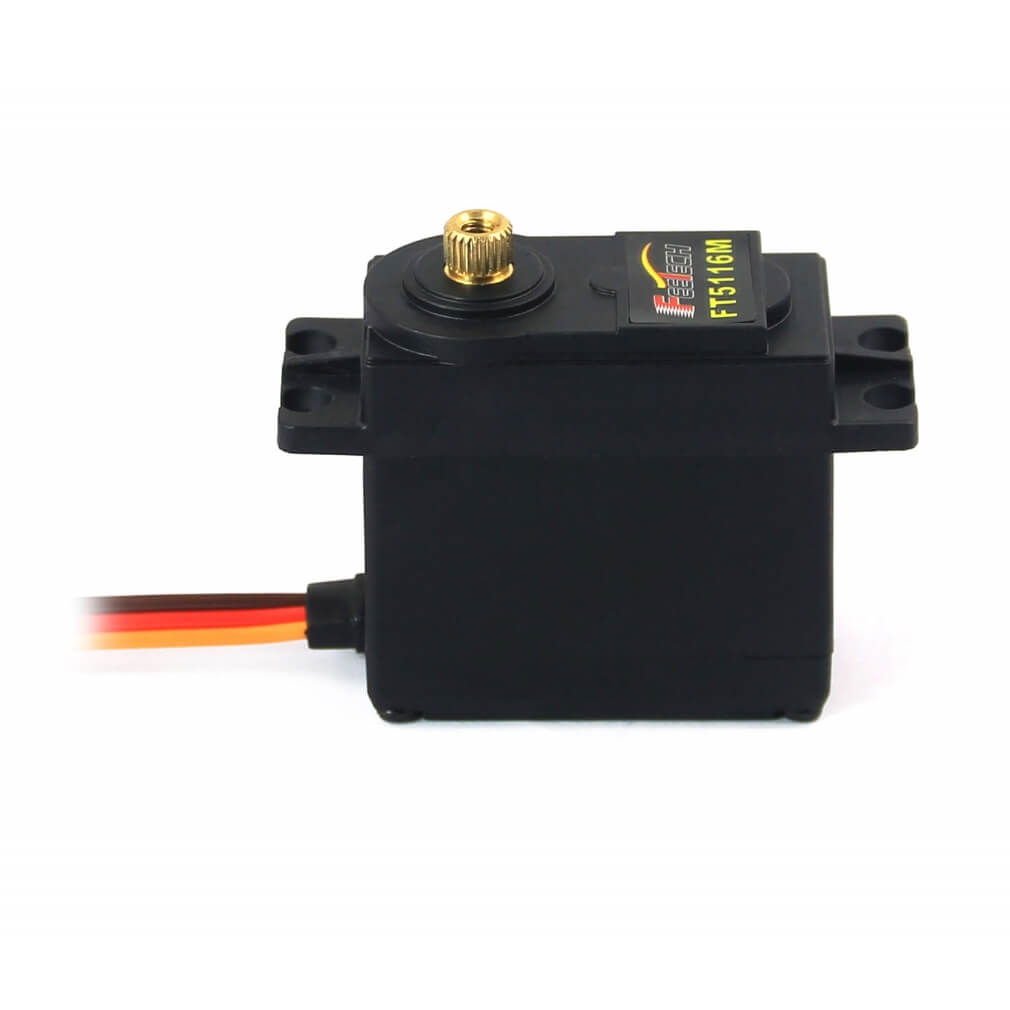

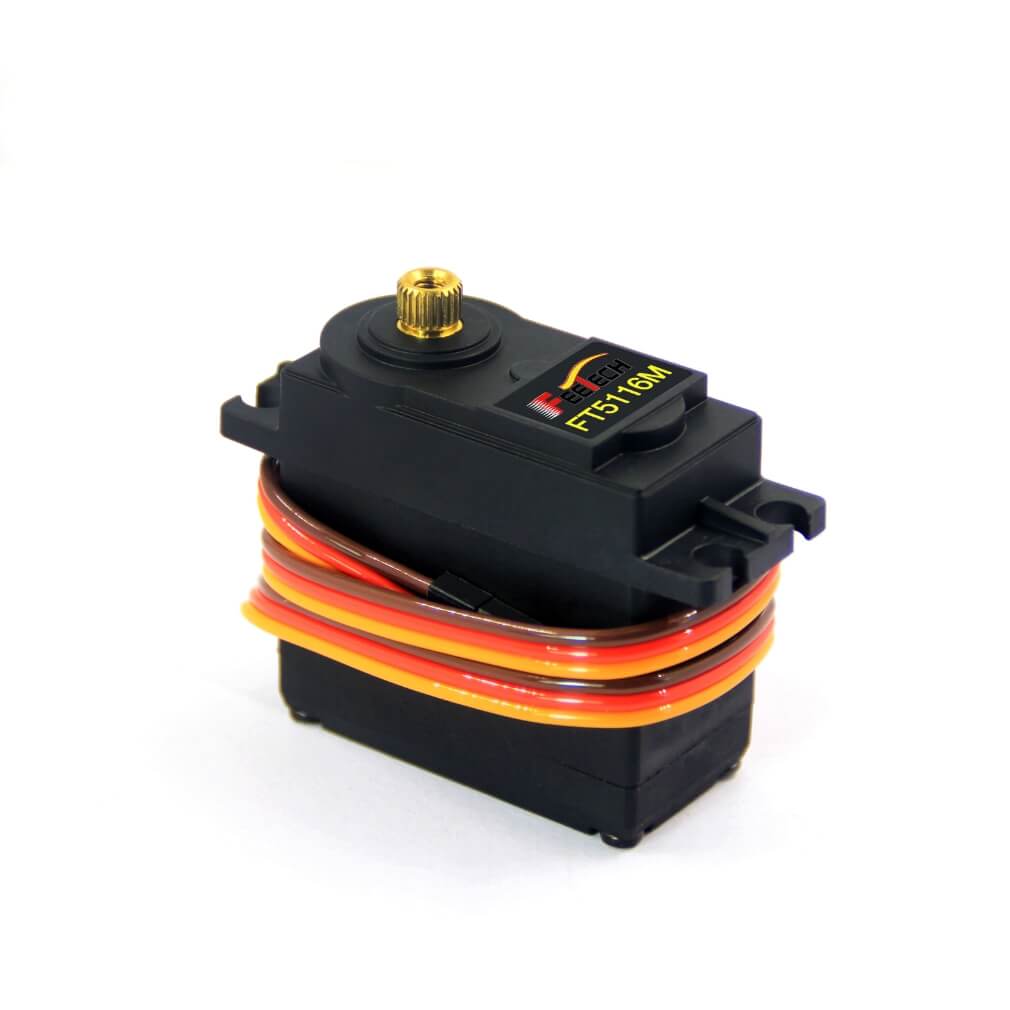

FeeTech Digital Metal Gear Servo 15Kg/cm FT5116M

FeeTech Digital Metal Gear Servo 15Kg/cm FT5116M

Regular price $18.95 AUD
Regular price Sale price $18.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Free Shipping for Orders Over $50!
  • All Stock in Australia & Sent from Australia!
  • Easy 30 day Returns!

This is the standard size Metal Gear Digital Servo . This solid consumer grade servo is able to take in 6 volts and deliver 15kg.cm of maximum torque at 0.2sec/60° and has out of control protection, overheating and overload protection.

This is a simple servo for any beginner project with fail safe protection!

This high quality servo is perfect for your rc and mechatronic needs and if you are looking to get into robotics, this is where to start.

The FT5116M servo comes standard with a 3-pin power and control cable (red=power, brown=ground and yellow=data) and all hardware listed below.

Specifications:

  • Gear type: Copper Gear
  • Limit angle: No limit
  • Bearing: 2 Ball bearings
  • Horn gear spline: 25T (5.9 mm)
  • Horn Type: Plastic, POM
  • Storage Temperature Range: -30 ~ 80 °C
  • Operating Temperature Range: -15 ~ 70 °C
  • Gear type: Copper Gear
  • Limit angle: No limit
  • Bearing: 2 Ball bearings
  • Horn gear spline: 25T (5.9 mm)
  • Horn Type: Plastic, POM
  • Case: Nylon & Fiberglass
  • Motor: Metal brush motor
  • Operating Voltage Range: 4.8 - 6 V
  • Idle current (at stopped): 5 mA
  • No-load speed: 50 RPM @ 6 V
  • Running current (at no load): 150 mA @6V
  • Peak stall torque: 15.5 kg.cm @ 6 V
  • Rated torque: 5 kg.cm @ 6 V
  • Stall current: 1800 mA @ 6 V
  • Running degree: 300° (±5°) (when 500~2500 µsec)
  • Rotating direction: Counterclockwise (when 1000~2000 µsec)
  • Weight: 64 g

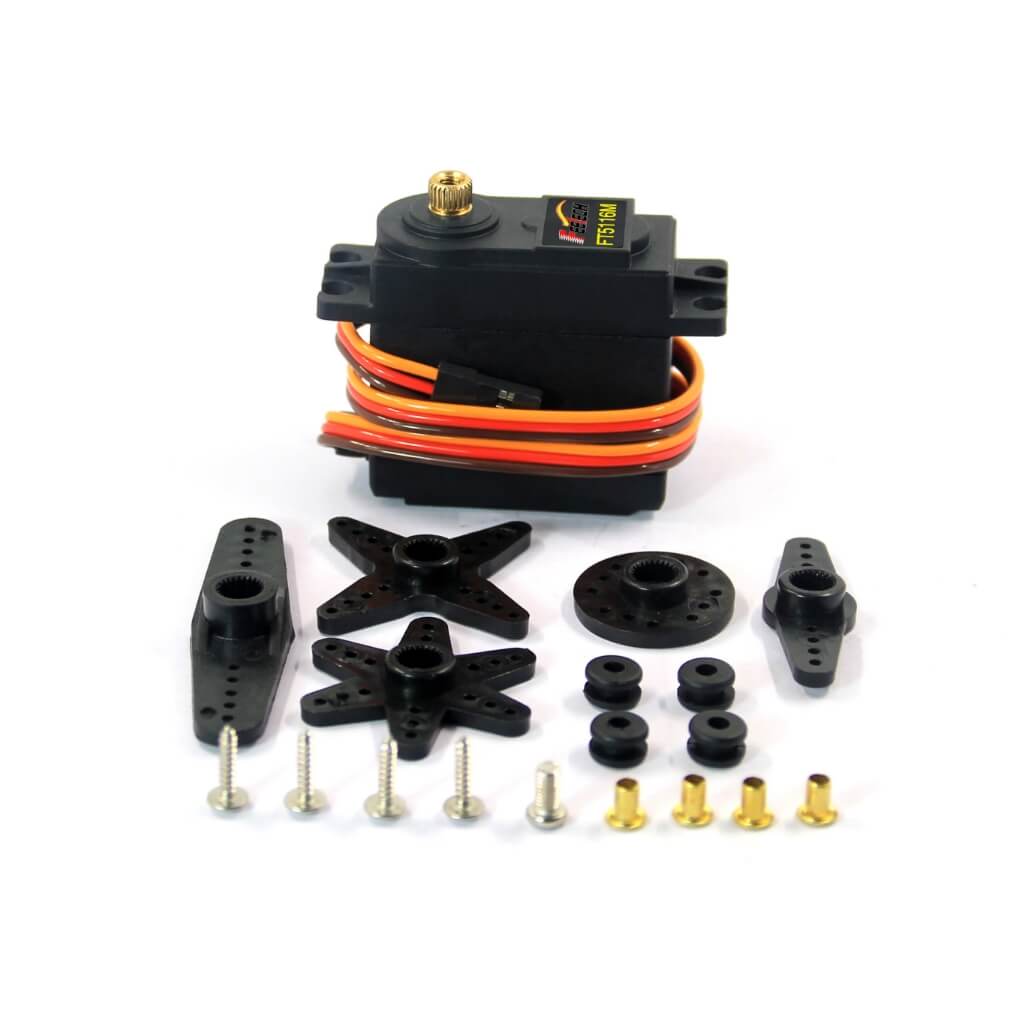

Package Included:

  • 1x FT5116 High Torque Servo
  • 1x Double Arm Horn
  • 1x Circle Horn
  • 1x Four Point Horn
  • 1x Six Point Horn
  • 2x 3x10mm Phillips Screw
  • 4x 2x13mm Mounting Phillips Screw
  • 4x Rubber Grommets
  • 4x Brass Eyelets
