FeeTech FS90R Micro 360 Degree Continuous Rotation Servo
FeeTech FS90R Micro 360 Degree Continuous Rotation Servo
- Free Shipping for Orders Over $50!
- All Stock in Australia & Sent from Australia!
- Easy 30 day Returns!
This micro 360 Degree servo with accessories is great value and is ideal for micro-controller systems like the BBC micro:bit, Arduino, Raspberry Pi and PICAXE.

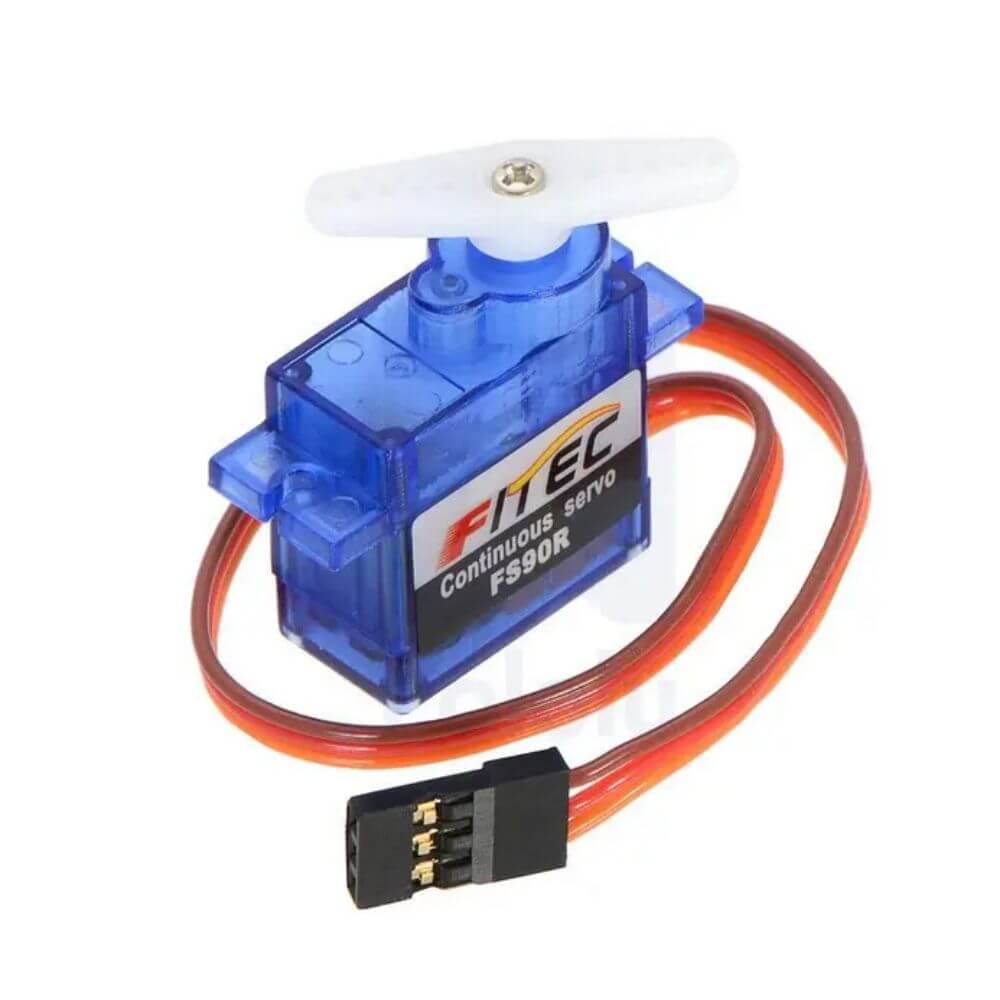

The FS90R is a micro-sized servo that has been built by FEETECH (formerly known as Fitec) specifically for continuous rotation. At 6V, it has a maximum rotation speed of around 130 RPM (no-load) and can produce up to 1.5 kg-cm of torque. The servo can be controlled using a direct connection to a single micro controller I/O line without any additional electronics, which makes it a great miniature actuator for beginner robotics projects.
- Brand: FeeTech
- Model: FS90R
- Gear Type: Nylon Plastic
- Control System : Analog
- Dimensions:
- Main body:
- length 22.5mm, height 27.5mm, width 12.0mm
- Including mounting tabs and output shaft:
- length 32.2mm, height 30.5mm, width 12.0mm
- Operating Voltage : 4.8V~6V
- Operating Speed : 0.12sec/60degree (4.8V), 0.10sec/60degree (6V)
- Stall Torque: 1.3kg.cm (4.8V), 1.5kg.cm (6.0V)
- Operating Angle :360 degree
- Required Pulse : 900us-2100us
- Direction : CCW
- Connector Wire Length : 20 cm

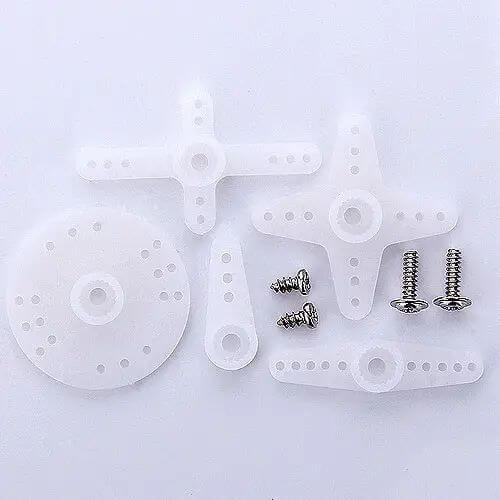

Package Includes:
- 1x FS90 Servo
- 5x Servo Arms
- Mounting Screws
