SkyRC iMax B6AC V2 50W Balance Charger

SkyRC iMax B6AC V2 50W Balance Charger

Regular price $99.95 AUD
Regular price $199.95 AUD Sale price $99.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Free Shipping for Orders Over $50!
  • All Stock in Australia & Sent from Australia!
  • Easy 30 day Returns!
SKYRC B6AC V2 is the upgraded version for well-known iMAX B6AC. Compared with iMAX B6AC, it is more accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safer than V1.

SKYRC B6AC V2 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium High Voltage,Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.

Optimized Operating Software

B6AC features an AUTO function that sets the feed current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion. It can disconnect form the circuit automatically and sound an alarm if any malfunction is detected. All the programs of this product are controlled through two way linkage and communication buttons to achieve maximum safety and minimize setting confusion.

Balancing Individual Cells While Battery Discharging

During the process of discharging, the B6AC can monitor and balance each cell of the battery individually. An Error message will be displayed and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to Various Types of Lithium Battery

The B6AC is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

Fast and Storage Mode Charging of Lithium Batteries

These functions allow Lithium batteries to be ‘fast’ charged to greatly reduce total duration of charging time, whereas ‘store’ state can control the final voltage of your battery to allow safe storage over long periods of time.

Maximum Safety

Delta-peak sensitivity: Automatic charge termination program based on the principle of Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.

Automatic Charging Current Limit

You can set up the upper limit of the charging current when charging your NiCd or NiMH battery which useful when charging a NiMH battery of low impedance and capacity in the 'AUTO' charging mode.

Capacity limit

The charging capacity is calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

Temperature threshold*

The battery’s internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. * This function is available by connecting optional temperature probe, which is not included in our package.

Processing Time Limit

You can also limit the maximum process time to avoid any possible possible problems.

Input Power Monitoring

If using a car battery as a DC input power source the B6AC constantly monitors the battery for low voltage. If the voltage drops below the lower limit, the process will be ended automatically.

Data Store/Load

A maximum of five batteries’data can be stored for user convenience. You can store the data pertaining each batteries' program setting of their continuous charging or discharging. Users can recall this data at any time without any special program setting.

Cyclic Charging/Discharging

1 to 5 cyclic and continuous process of charge/discharge or discharge/charge is selectable for battery refreshing and Balancing to help optimize the performance of your battery.

Specifications:

  • AC input: 100-240Volt
  • DC input: 11-18Volt
  • Circuit power: Max.charge power 50W
  • Max.discharge power 5W
  • Charge current range: 0.1-6.0A
  • Discharge current range: 0.1-2.0A
  • Current drain for balancing Li-po: 200mA/cell
  • NiCd/NiMH battery cell count: 1-15cells
  • Li-ion/Polymer cell count: 1-6cells
  • Pb battery voltage: 2-20V
  • Net weight: 575g

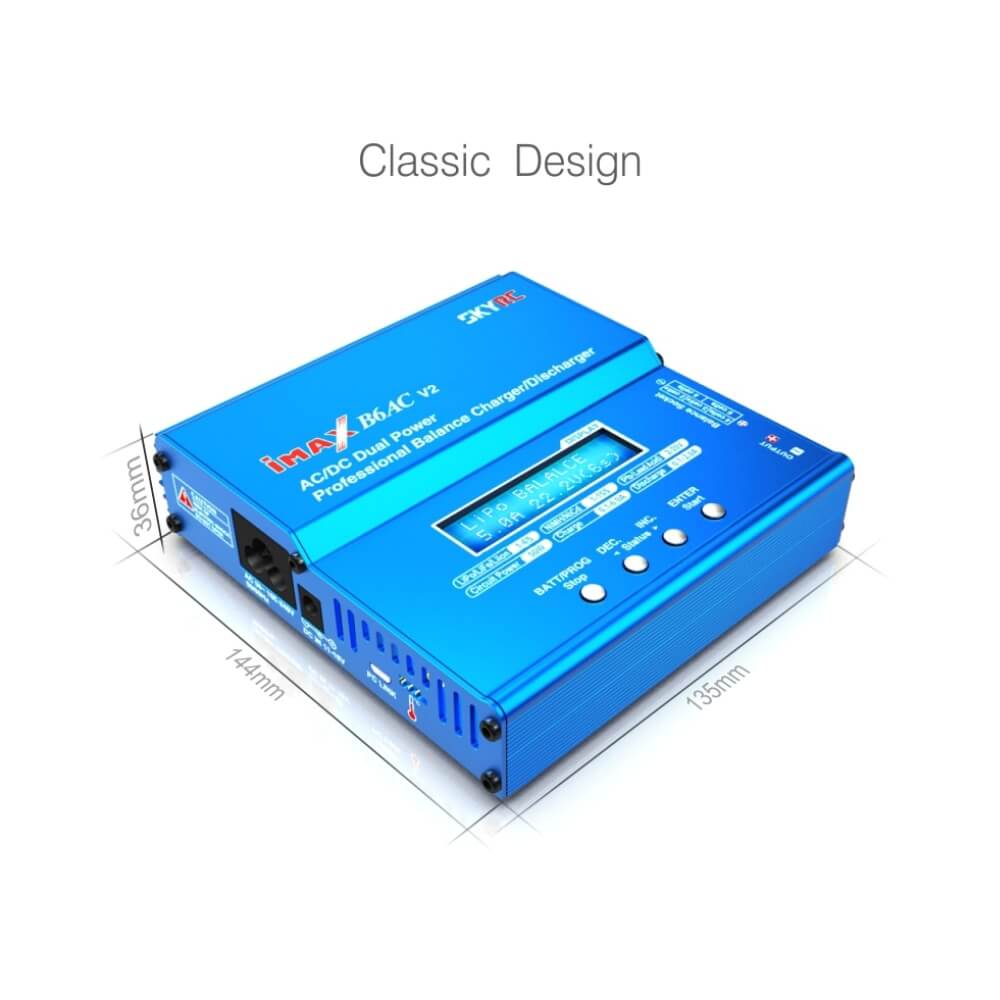

  • Dimension: 135x144x36mm

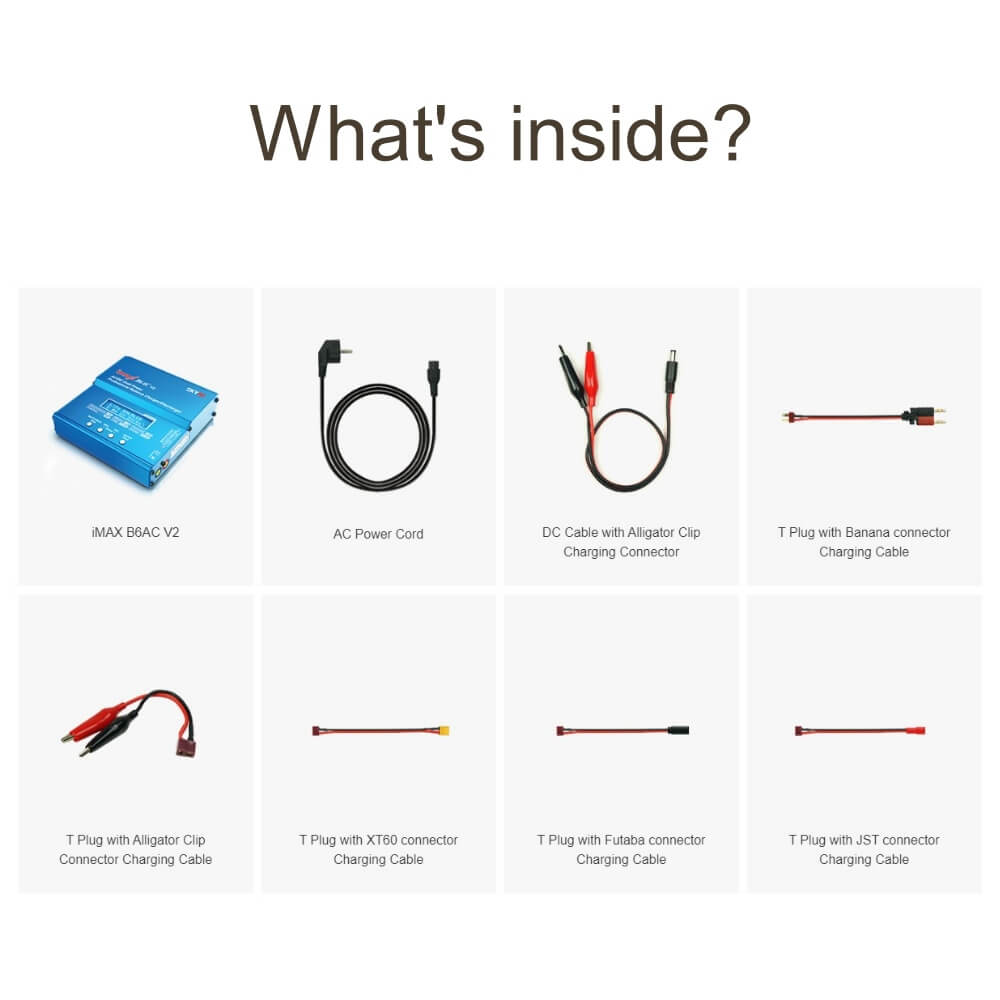

Package Includes:

  • iMax B6AC V2 Charger
  • AC Power Code (AU Plug)
  • DC Cable with Alligator Clip Charging Connector
  • T Plug with Banana connector Charging Cable
  • T Plug with Alligator Clip Connector Charging Cable
  • T Plug with XT60 connector Charging Cable
  • T Plug with Futaba connector Charging Cable
  • T Plug with JST connector Charging Cable
  • Instruction Manual
