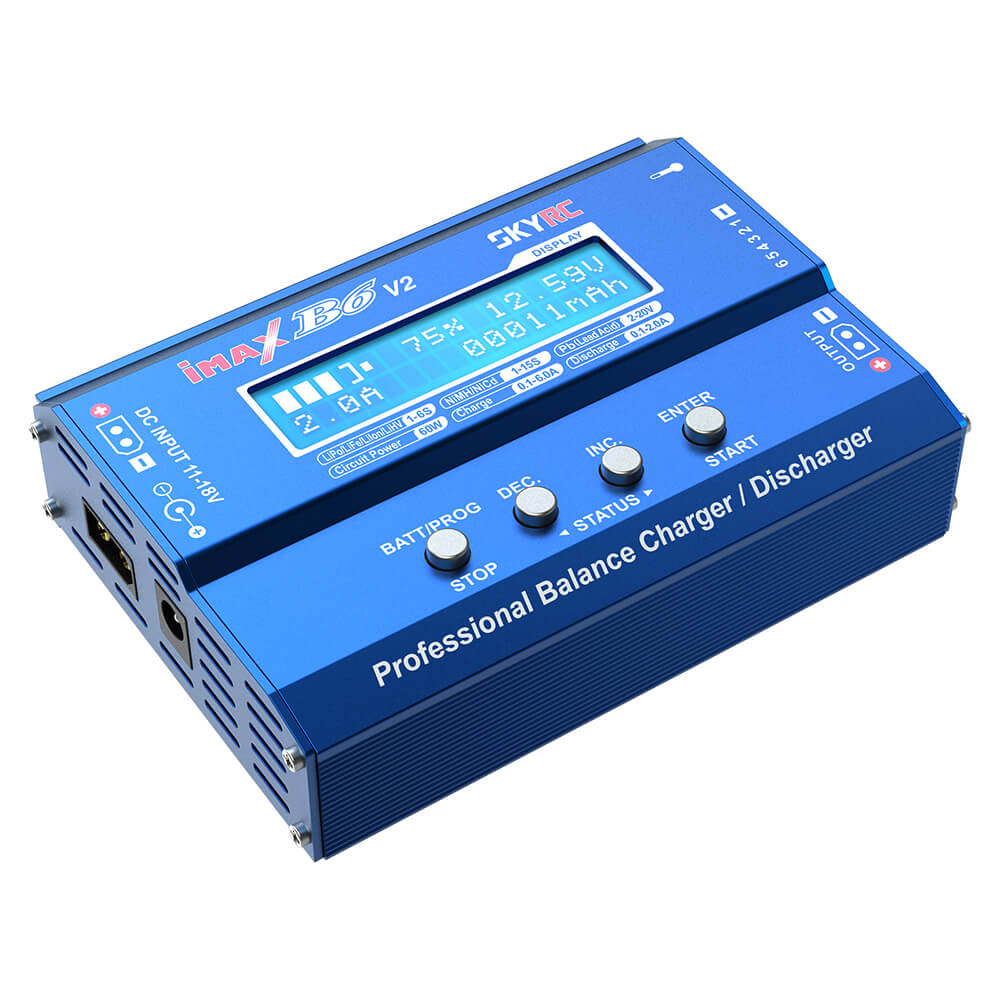

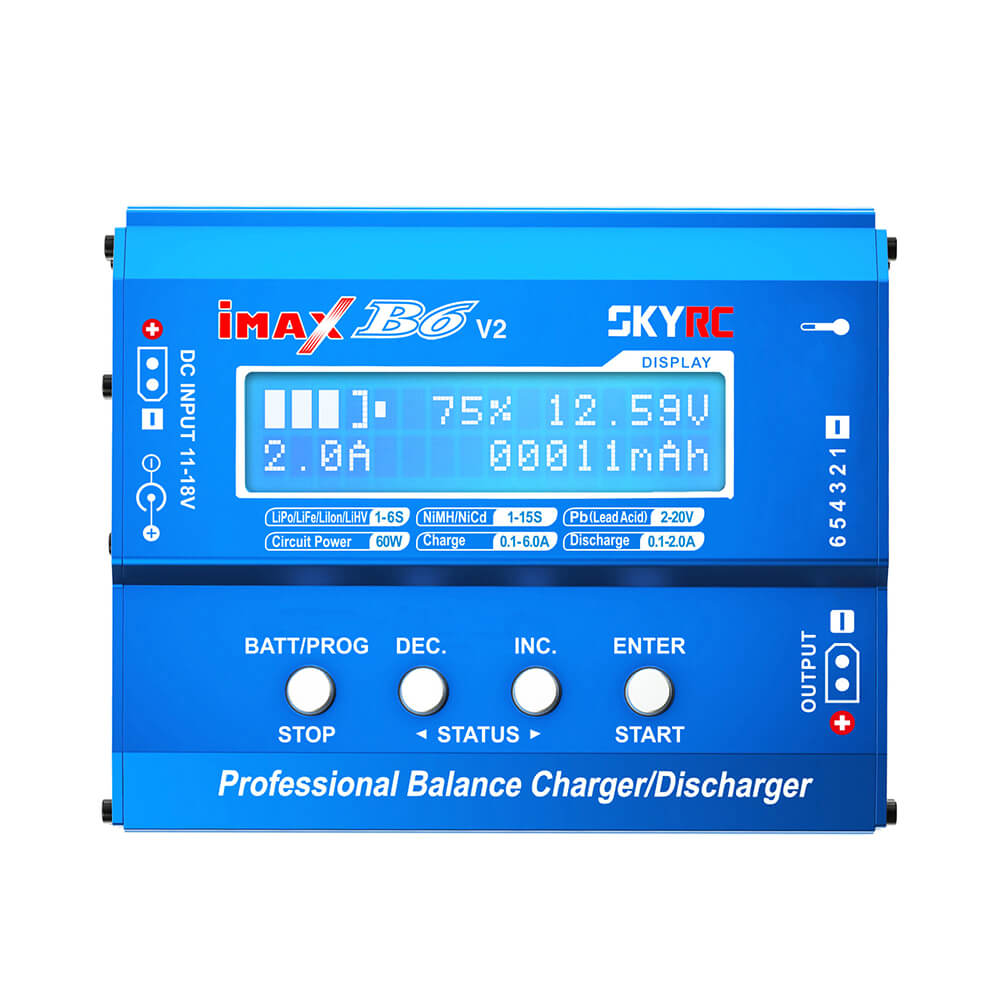

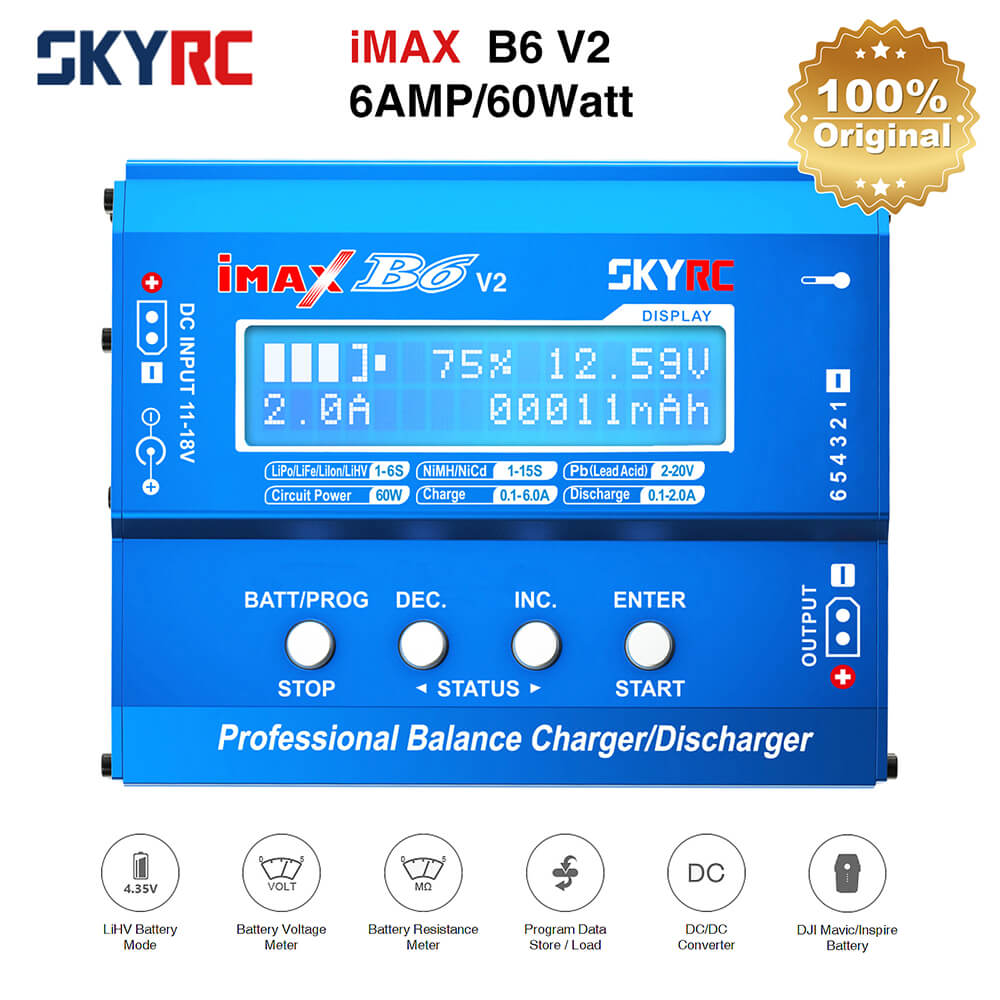

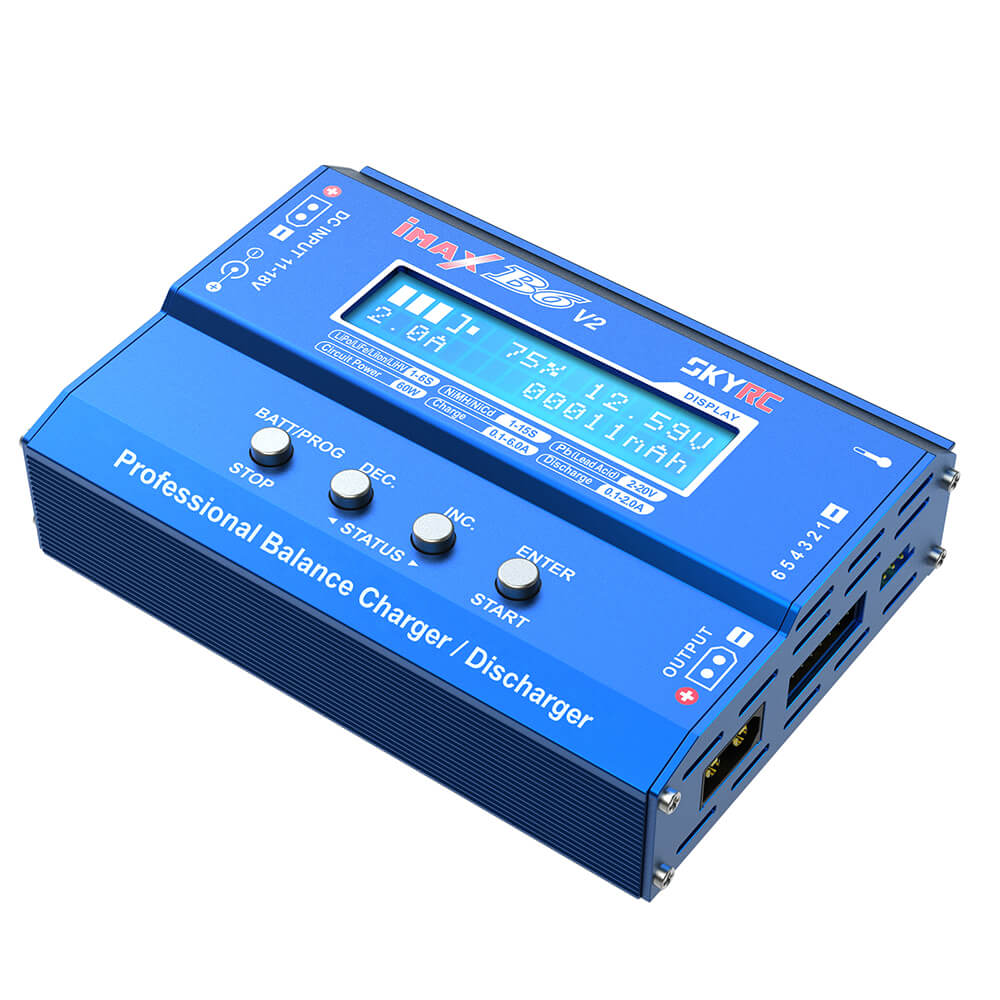

SkyRC iMAX B6 V2 Balance Charger

SkyRC iMAX B6 V2 Balance Charger

Regular price $64.95 AUD
Regular price $84.95 AUD Sale price $64.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Free Shipping for Orders Over $50!
  • All Stock in Australia & Sent from Australia!
  • Easy 30 day Returns!

The Sky RC B6 V2 is a high-performance, micro-processor controlled charger/discharger/DC/DC converter designed for all mainstream battery types, including LiPo, LiFe, Li-Ion, LiHV, NiMH, NiCd, and Pb. With 60W integrated power, it can charge up to 6A and supports DJI Mavic/Inspire batteries with a maximum 4A charge power.

Features:

  • Multi-purpose for Most Battery Chemistries: Compatible with LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb batteries.
  • Battery Icon & Percentage Display: Real-time battery power displayed with icons and percentage of charge/discharge.
  • High-Speed Micro Controller: ARM® Cortex®-M3 32-bit high-speed processor enhances data processing capability by 20 times.
  • Power Comparison: Provides 20% more charge power compared to the B6 charger, making the process more efficient.
  • DC/DC Converter: Integrated with DC power input, delivering max power of 60W with voltage ranging from 5-26V and current from 1-6A.
  • Charging DJI Mavic/Inspire Battery: Charges DJI Mavic/Inspire batteries with a maximum charge current of 4A.
  • AGM & Cold Charge Modes for PB Battery: Charges AGM batteries and PB batteries at very low temperatures.
  • Thermal Cutoff: Automatically terminates the charging process if the temperature exceeds the threshold (requires optional temperature sensor cable SK-600040-01).
  • Optimized Operating Software: AUTO function sets the feeding current during charging/discharging, preventing overcharging and ensuring maximum safety.
  • Voltage Calibration: Allows voltage calibration directly on the device with a 6S Lipo battery.
  • Memory of Last Operation: Memorizes the last charging/discharging operation before power off.
  • Battery Memory: Stores up to 10 different charge/discharge profiles.
  • Terminal Voltage Control (TVC): Allows users to change the end voltage.
  • Balancing Individual Cells During Discharging: Monitors and balances each cell during discharging.
  • Re-peak Mode for NiMH/NiCd Battery: Re-peak charge mode can peak charge the battery multiple times for full charge.
  • Cyclic Charging/Discharging: 1 to 5 cyclic processes for refreshing and balancing batteries.
  • Capacity Limit: Automatically terminates the process if the charging capacity exceeds the set limit.

Specifications:

  • Brand: SKYRC
  • Model: B6 V2
  • Item No.: SK-100161
  • Case Material: Aluminium
  • Case Size: 115x84x31mm
  • Weight: 238g
  • DC Input: 11-18V
  • Charge Power: 60W
  • Discharge Power: 5W
  • DC Output Wattage: 60W
  • Charge Current: 0.1-6.0A
  • Discharge Current: 0.1-2A
  • Balance Current: 300mA/cell
  • Trickle Current: 50-300mA/OFF
  • LiPo/LiHV/LiFe/Li-Ion: 1-6 cells
  • NiMH/NiCd: 1-15 cells
  • Pb: 3P / 6P
  • DJI Mavic: 3 cells (LiHV)
  • DJI Inspire: 4 cells (LiHV)
  • Battery Capacity Range: 100-50000mAh
  • Balance Cells: 2-6 cells
  • Safety Timer: 1-120 minutes off
  • Memory: 10 different charge/discharge profiles

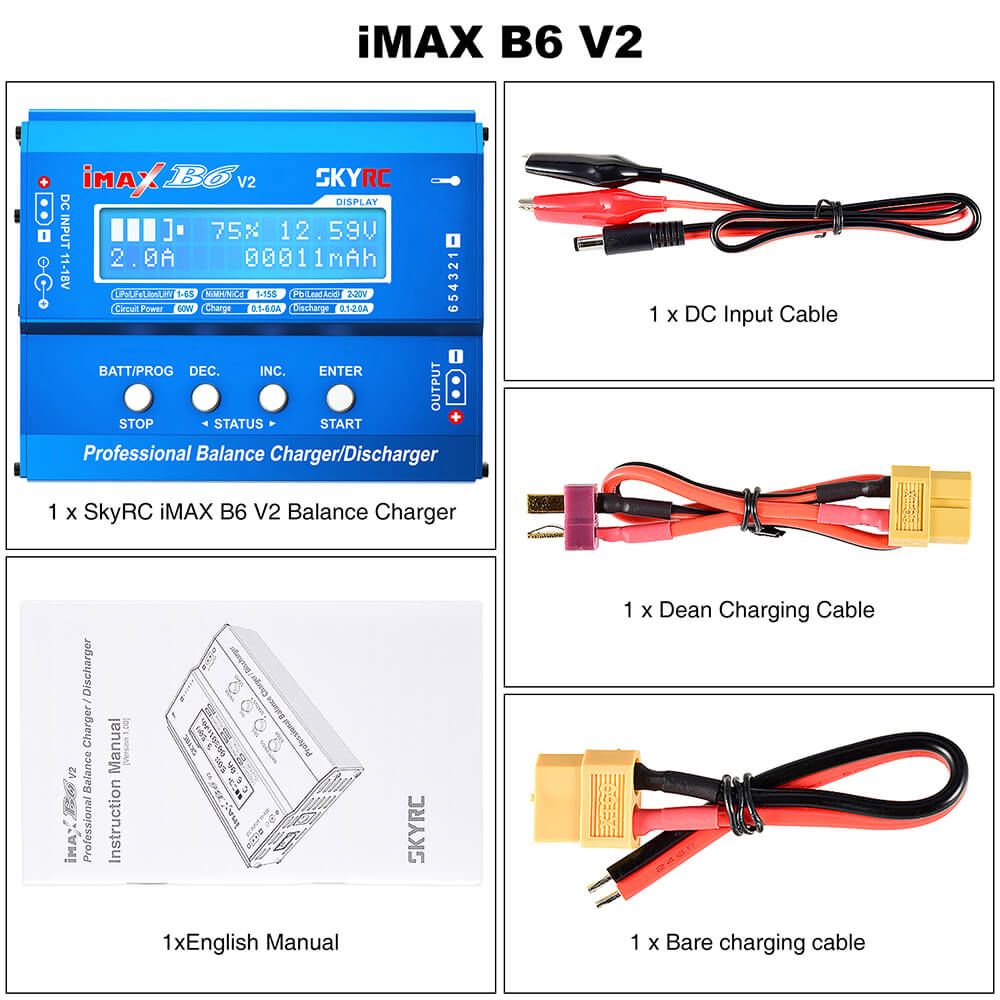

Package Includes:

  • 1 x SkyRC iMAX B6 V2 Balance Charger
  • 1 x DC Input Cable
  • 1 x Dean Charging Cable
  • 1 x Bare Charging Cable
  • 1 x Instruction Manual

Note: Power supply does not come with the charger. You can purchase the SkyRC Power Supply separately here.
